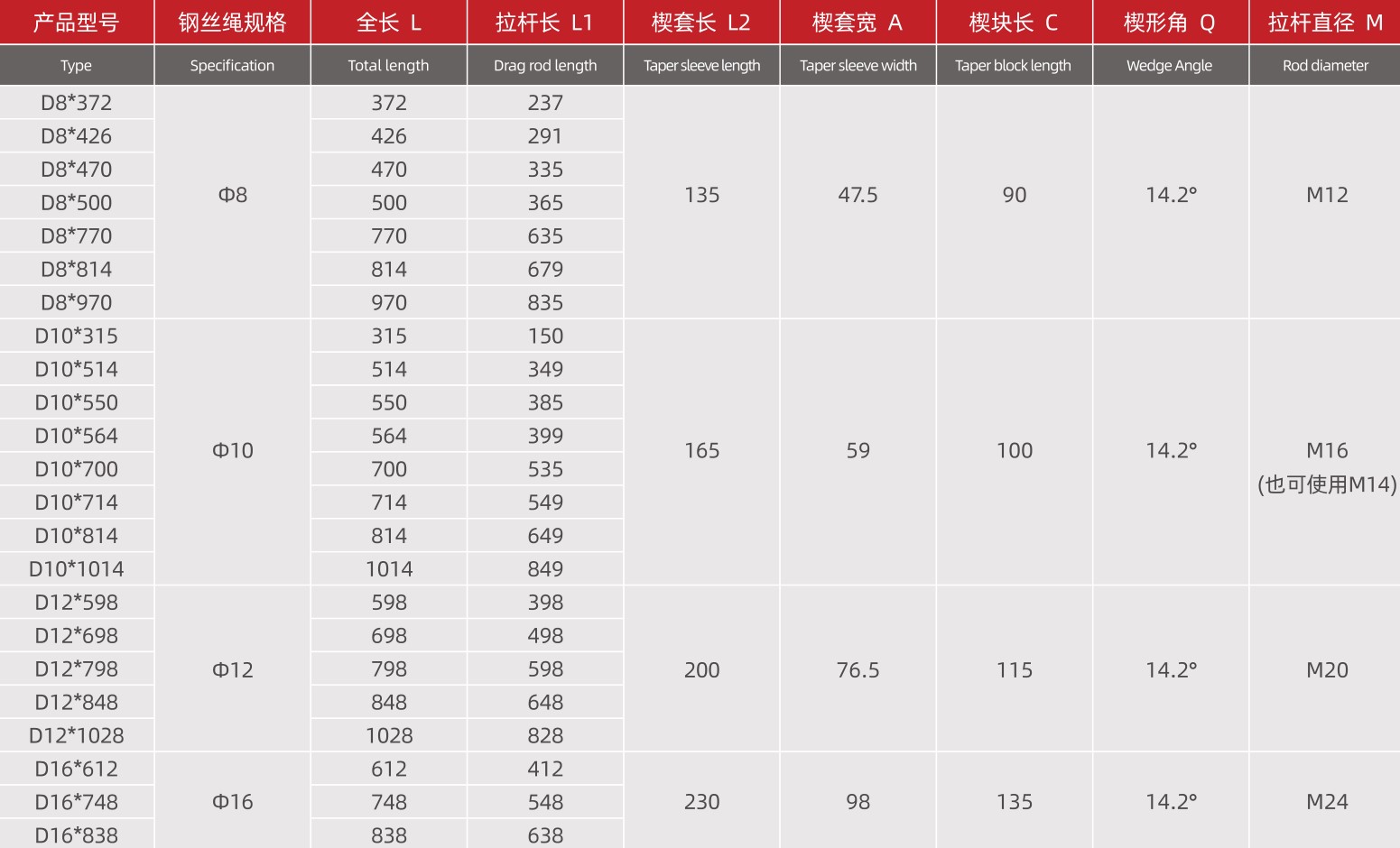

D6 | D6x155 | D6x235 | D6x325 | D6x425 | |||
D8 | D8x372 | D8x426 | D8x470 | D8x500 | D8x770 | D8x814 | D8x970 |
D10 | D10x315 | D10x514 | D10x550 | D10x564 | D10x700 | D10x714 | D10x814 |
D12 | D12x598 | D12x698 | D12x798 | D12x848 | D12x1028 | ||
D16 | D16x612 | D16x748 | D16x838 |
Features
• Carrying capacity: ≥80% of the designed breaking load of the wire rope
• Arc design to avoid stress concentration
• Large swing amplitude, effectively reducing mechanical wear between accessories and buffering vibration load
• The optimal wedge self-locking angle obtained through precise calculation and finite element analysis not only ensures the self-locking force of the elevator wire rope, but also reduces the extrusion wear of the wedge sleeve and wedge block on the wire rope, increasing the service life of the wire rope
Application

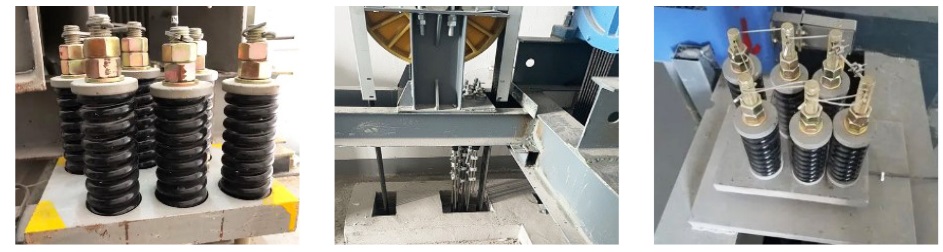

• Used for connecting the elevator traction rope and car, symmetrical device and machine room load-bearing beam
Material, coating | Electro-galvanized, Dacromet, electrophoretic black (compression spring) |
Head setting | External thread |
Certification/Test Report | CWB、ISO5817、5.5 million times fatigue test, certified by National Elevator Quality Testing Center |
Flaw detection | X-ray/Magnetic Particle |
Quality Inspection | pass |
Product Origin | Songjiang District, Shanghai |
